Introduction
I’ve recently switched from running vyos on a custom-built router to edgeos on an EdgeRouter 6P.
Both solutions are derived from the vyatta router.
vyos still keeps its open source roots and has recently gone through a sweeping change of the software architecture, bringing it closer to modern standards.
edgeos commercialized the software, adding hardware to its product line, as well as beautiful user interface on top of the always present command line interface.
In any case, the biggest win this change brought for me has been power consumption: the ER6P barely draws 7w when it’s busy, normally hovers around 6.5w.
My previous router normally hovered above 20w.
First steps
Since I was using vyos, I was able to reuse some of the configuration commands, in order to shape traffic the way I needed.
The only thing I’ve been unable to find is fq-codel
for the shaper traffic policy, but so far so good in terms of my expectations.
No more tracking
I was aware of pihole and people using it to prevent tracking at the network level.
Articles such as
Securing DNS across all of my devices with Pi-Hole + DNS-over-HTTPS + 1.1.1.1
Block Ads at a Network Level with Pi-Hole and an Ubiquiti EdgeRouter
really made me want to try this out.
The berry is darker on the other side

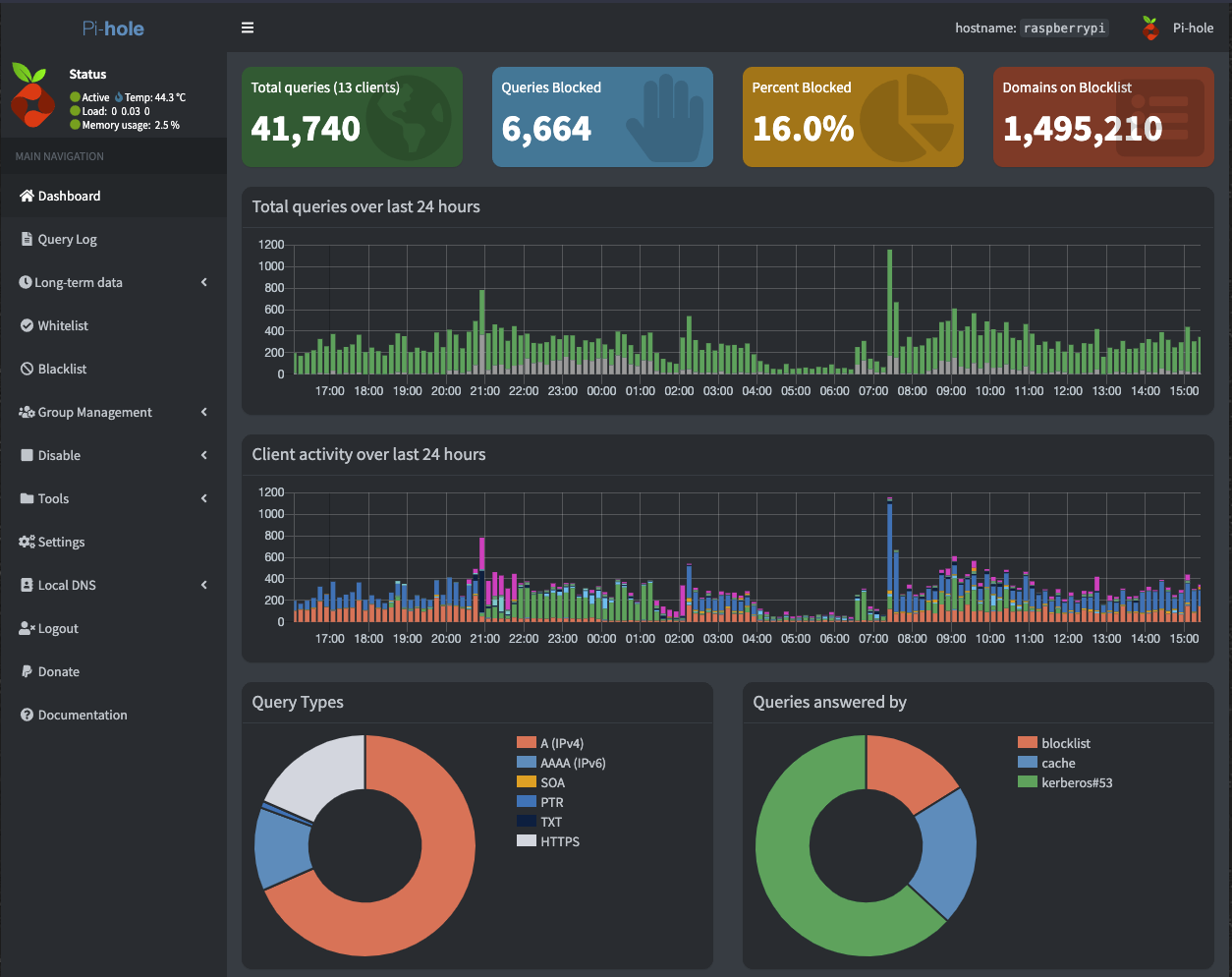

So I purchased a Raspberry Pi 4, installed pi-hole and just sat and watched how many requests were being blocked
Life was good !
But I started thinking about the whole setup and what bothered me was the fact that the pi needed to be always up, otherwise I’d lose dns resolution.
What some people do is have a backup pi, but I didn’t really see that much benefit in that.
Enter the new contender
So I looked at some alternatives, I ruled out installing pihole on the router, and then, almost by chance, I found out about AdGuard Home (github).
It’s built with go, so I knew it could run almost anywhere.
I ran it as a docker in one of my linux boxes to get a taste and it worked really great.
That’s when I decided to install it on the EdgeRouter 6P.
Fast track to sweetness

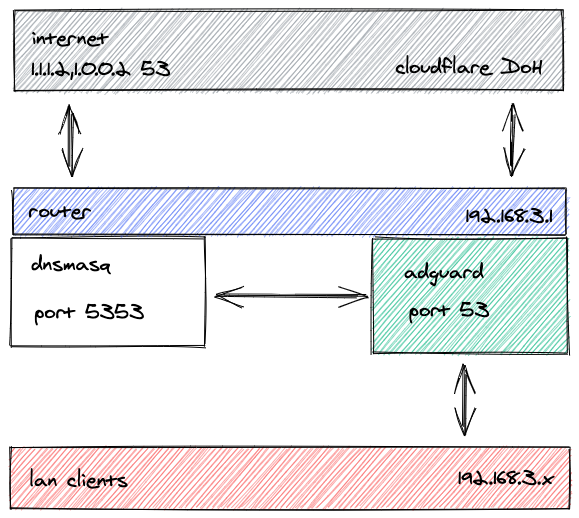

After some careful considerations, I settled on the following architecture
- The router has Cloudflare’s 1.1.1.2 and 1.0.0.2 as its name servers, so it has its own route to name resolution.
- LAN clients are fed 192.168.3.1 as their dns server, which is handled by AGH on port 53.
- AGH upstream server is Cloudflare Dns-Over-Https
- I also set up some custom rules to delegate local domain queries to the dnsmasq service running on the router
- Anything that is not 192.168.3.1, is being forced to go through AGH for dns
Step by Step

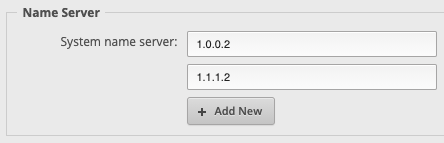

Set system name servers

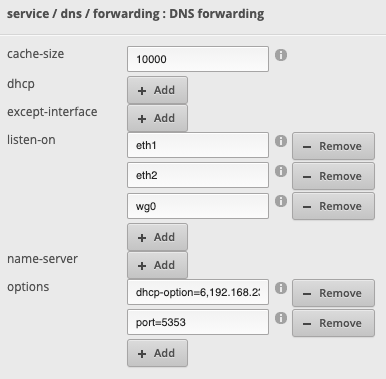

Change dnsmasq port and set dns server for dhcp clients
The dnsmasq options allow us to do the following:
# set the default dns server for dhcp clients
dhcp-option=6,192.168.3.1
# set the port where dnsmasq listens on
port=5353
Also note that I told dnsmasq to use the system’s name servers (we’ll check that later with the full set of cli commands)
Set up AdGuard Home
This is one the trickier things in this whole setup.
We need AGH to be available in these 2 scenarios
- router restart
- router firmware upgrade
In the first case, turns out AGH helps us with its -s install
argument. It creates systemd services that just work :)
For the second case, my approach was to create a /config/adguard
folder, and make everything AGH-related to live there.
Let’s get down to the details
- Set up the folders
mkdir -p /config/adguard/{config,work}
- Install AGH
cd /config/adguard
curl -sL https://static.adguard.com/adguardhome/release/AdGuardHome_linux_mips64_softfloat.tar.gz | tar xvz
mv AdGuardHome bin
tar creates a /config/AdGuardHome folder, which we move to a bin folder
note: confirm whether your router is little-endian architecture or not, as there are different binaries for each architecture.
- Set up AGH
cd /config/adguard/bin
sudo ./AdGuardHome -c /config/adguard/config/AdGuardHome.yaml -w /config/adguard/work
Just follow the instructions, set AGH to listen on the lan interface and the web ui on some port other than 80, since it’s owned by the edgeos web ui

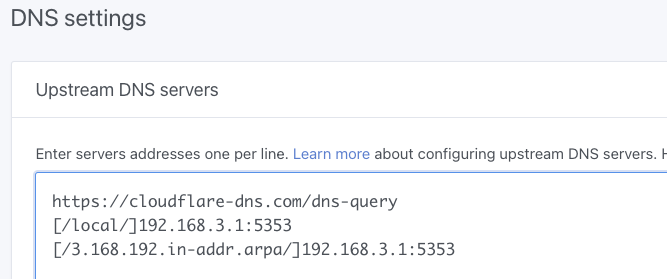

Now set up the upstream dns server and dns resolution for local domains
I left the bootstrap servers as per the default
- Make AGH run after restarts
sudo ./AdGuardHome -s install -c /config/adguard/config/AdGuardHome.yaml -w /config/adguard/work
So I install AGH, to create the systemd service required for it to start during boot
- Make AGH survive a firmware upgrade
I created the following bash script on /config/scripts/firstboot.d/adguard
, based on this filesystem layout reference and this tool to persist debian packages
#!/usr/bin/env bash
cd /config/adguard/bin
./AdGuardHome -s install -c /config/adguard/config/AdGuardHome.yaml -w /config/adguard/work
cd
- Force hardcoded dns to go through AGH
After reading this article by Scott Helme, I decided it was worth the extra effort.
I modeled the setup based on this reference
nat {
rule 1 {
description "Redirect DNS requests"
destination {
port 53
}
inbound-interface eth1
inside-address {
address 192.168.3.1
port 53
}
log disable
protocol tcp_udp
source {
address !192.168.3.1
}
type destination
}
rule 5011 {
description "masquerade for DNS to LAN"
destination {
address 192.168.3.1
port 53
}
log disable
outbound-interface eth1
protocol tcp_udp
type masquerade
}
}
Great Success !!
This is the full set of cli commands needed for this to work
set system name-server 1.0.0.2
set system name-server 1.1.1.2
set service dns forwarding cache-size 10000
set service dns forwarding listen-on eth1
set service dns forwarding listen-on eth2
set service dns forwarding listen-on wg0
set service dns forwarding options dhcp-option=6,192.168.23.1
set service dns forwarding options port=5353
set service dns forwarding system
set service nat rule 1 description 'Redirect DNS requests'
set service nat rule 1 destination port 53
set service nat rule 1 inbound-interface eth1
set service nat rule 1 inside-address address 192.168.3.1
set service nat rule 1 inside-address port 53
set service nat rule 1 log disable
set service nat rule 1 protocol tcp_udp
set service nat rule 1 source address '!192.168.23.1'
set service nat rule 1 type destination
set service nat rule 5010 description 'masquerade for WAN'
set service nat rule 5010 outbound-interface eth0
set service nat rule 5010 type masquerade
set service nat rule 5011 description 'masquerade for DNS to LAN'
set service nat rule 5011 destination address 192.168.3.1
set service nat rule 5011 destination port 53
set service nat rule 5011 log disable
set service nat rule 5011 outbound-interface eth1
set service nat rule 5011 protocol tcp_udp
set service nat rule 5011 type masquerade
Conclusion
I have my EdgeRouter 6P running AdGuardHome to block ads, without extra hardware thus decreasing potential points of failure.
AdGuardHome uses the same blocklists as pihole, so I can just use those.
I’ve set up AGH to survive firmware upgrades and reboots, so dns resolution and ad blocking is always available.
Update (Upgrades)
A new version of AdGuard Home is available, so I’d like to chronicle the process. It’s very easy.
ssh into the EdgeRouter 6P, then
cd /config/adguard/bin
sudo ./AdGuardHome -s stop
sudo ./AdGuardHome -s uninstall
cd ..
sudo rm -rf bin
sudo curl -sL https://static.adguard.com/adguardhome/release/AdGuardHome_linux_mips64_softfloat.tar.gz | sudo tar xvz
sudo mv AdGuardHome bin
cd bin
sudo ./AdGuardHome -s install -c /config/adguard/config/AdGuardHome.yaml -w /config/adguard/work
That’s it !
